FLOOR PEDESTAL SYSTEM
For clients who adore simplicity but wishes to infuse sophisticated design, the full height floor pedestal system might be the best option. The unmistakable increase in the demand for this system can be attributed to the conveniently customizable features of its panels and the layout’s nifty and contemporary look.

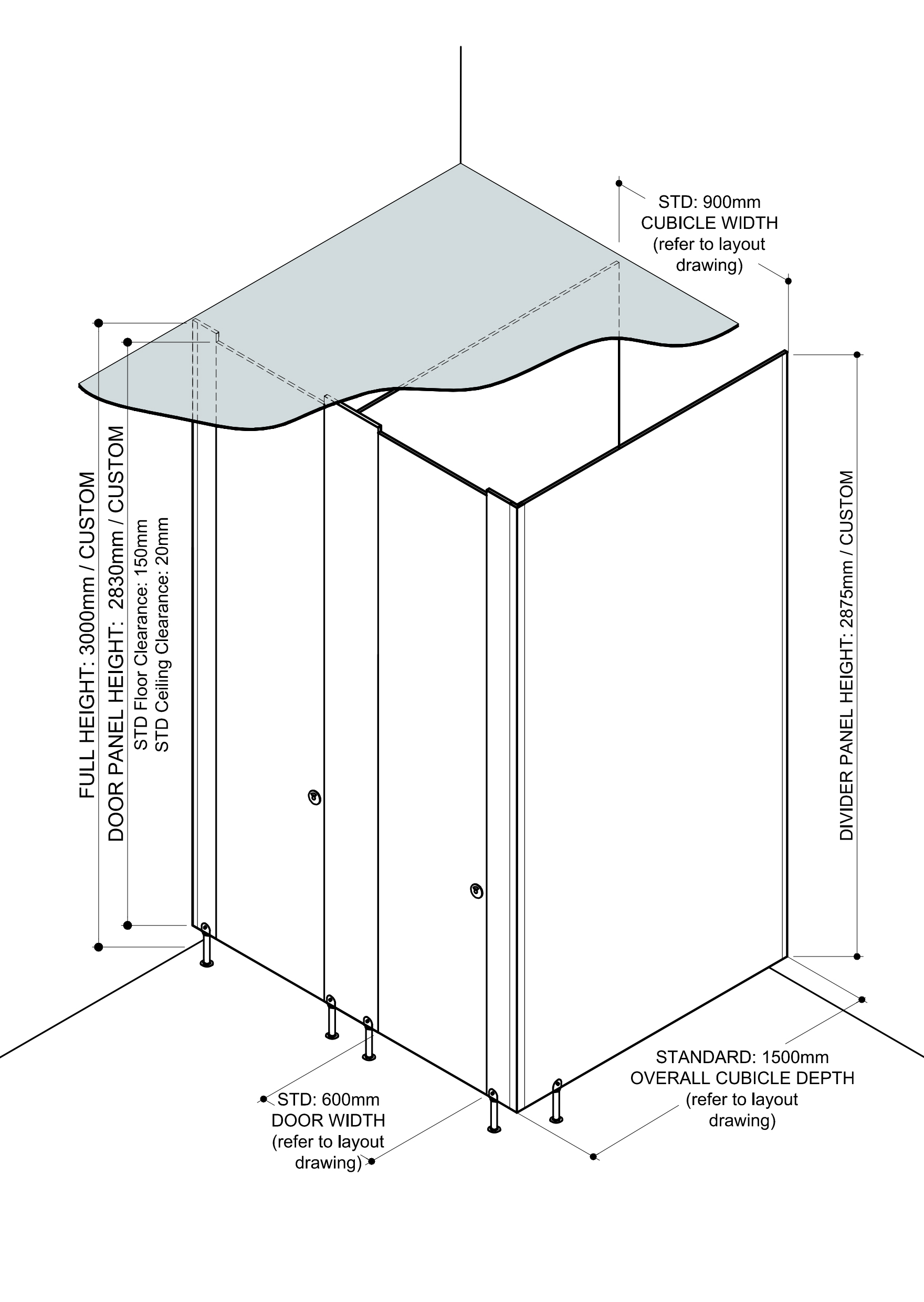

Isometric Plan
Specification Options
|
Overall Height |
Tailored Heights* Floor to Ceiling |
|
Colors |
Refer to the ADLER Color Range |
|

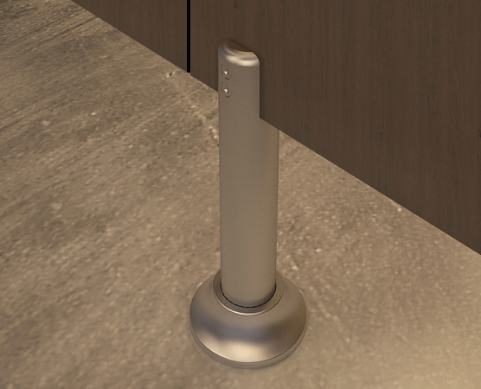

Floor Mounting Options |
SFR 1355 – 100mm SFR 1355 / A205CR – 150mm only SFR 1355 – 200mm SFR 1355 – 300mm |
|

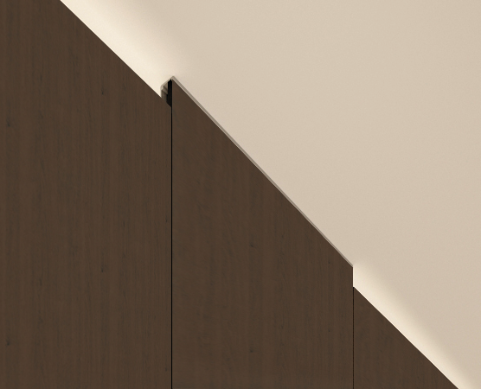

Headrail and Profiles |
Aluminum in Brushed S/S effect |
|
Floor to Door Clearance |
100mm 150mm 200mm 300mm |
|
Fittings |
Stainless Steel 304 |
|
Door – Toprail Clearance |
Tailored Heights – 20mm min. Floor to Ceiling – No Toprail |
|
Panel Size |
Tailored Heights Floor to Ceiling |
|
Ceiling Clearance |
Tailored Heights – Variable Floor to Ceiling – 20mm min.*** |
|
Board Material |
Compact Laminate 12mm Thick |
* Special Panel Size – Indent Order
** Option to Upgrade Accessories
*** Min. door to ceiling clearance for floor to ceiling systems
